MOI Engineering Limited offers state of the art, robust, user friendly & trouble free Cement Baking Machine for cementing of discharge tube heads on PVC caps of CFL. Such machines have been supplied to some of the top MNCs.

WORKING PRINCIPLE

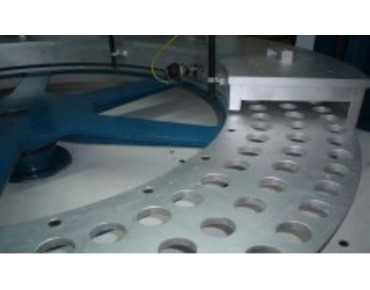

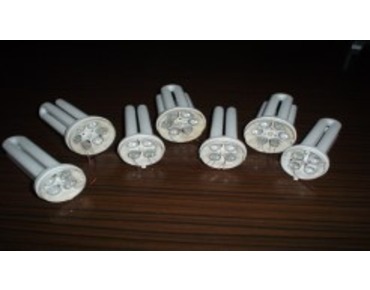

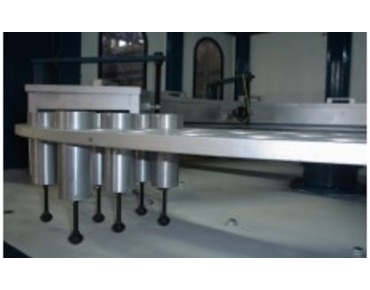

The DT tubes along with cemented PVC caps are placed in the DT Heads. The 192 DT Heads in 3 rows are placed on the Turret. These DT Heads carrying the DT Tube and Cap passes through various heating zone. The temperature of each heating zone can be maintained at individually. The baked DT’s are collected after one revolution of the turret.

TECHNICAL SPECIFICATIONS

Output:: 2200 CFL Per Hour Product Ranges: CFL 8W-2U, 14W-2U, 18W-3U, 23W-3U 5W-2U, 8W-3U, 11W-3U, 14W-3U Spiral 15W, 20W Machine Weight: 1200 Kg. Approx. Machine Height: 2750 mm Power Requirement: 415 V, 50 Hz, 3 Phase & Neutral

FEATURES

• Upto 2200 CFLs per hour
• Infinitely variable speed control using AC Drive
• Use of high quality, compact & long life infrared radiation panel heater
• Use of digital PID temperature controllers for precise process control
• Operator friendly CFL loading arrangement
• SS fabricated heating zone with efficient insulation system
• Simple, reliable, & maintenance free equipment
